Bump Turns

Bump Turns

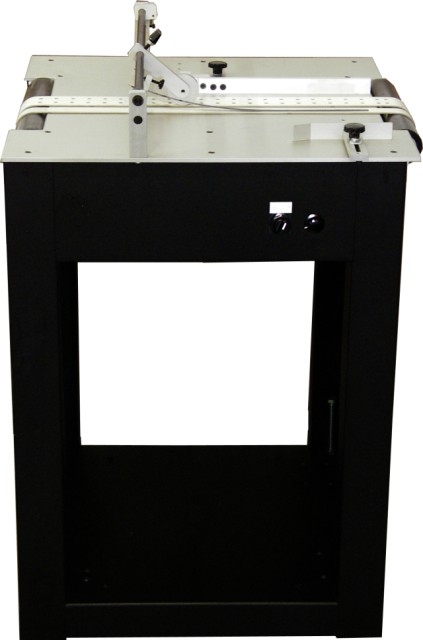

The 240BT Bump Turn provides an inline solution for rotating products 90 degrees from their infeed orientation. This unit is capable of turning a large range of material sizes and thicknesses left or right.

Easy integration coupled with versatility makes it the right choice for your turning application requirements.

Features

  • Quick and Easy Setup
  • Non-Proprietary Components
  • Variable Speed Transport
  • Adjustable Belts & Guides

Uncompromising Drivetrain

  • Large Diameter Steel Shafts
  • Steel Drive Pulleys
  • 12" Wide Steel Rollers
  • Sealed Shaft Locking Collar Bearings

Specifications

Turn Direction: Left or Right
Material Size: Min. 5"L x 3"W - Max 8.5"W x 11"L
Material Thickness: Up To 1/2" Standard
Physical: 24"L x 23.5"W x 33-36" H
Electrical: 110 VAC Single Phase 10 Amp Circuit
