Divert Gates

Divert Gates



 Walco Systems divert gates offer a reliable solution for your product verification needs.  A lightning fast air-actuated door provides defective or incorrect pieces a route to be removed from the product stream.  Spring loaded rollers allow more rigid pieces to be reliably diverted.  Oversize frames and bearings provide reliable operation, and non proprietary replacement parts ease the cost of service.

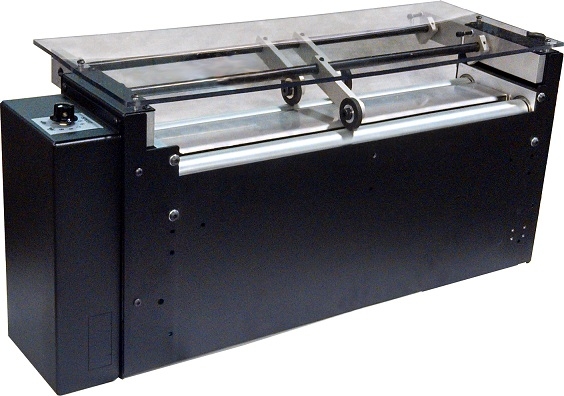

DG20

 Features:

  • Quick and Easy Setup
  • Variable Speed
  • Feeds Wide Variety of Products
  • Heavy Gauge Steel Construction
  • Sealed Shaft Locking Collar Bearings
  • Dry Contact Door Control



Specifications:

Material Size: Min. 4.5"L, No Min. Width
                      Max. Length dependent on material
                      Max. 20"W

Material Thickness: 1/4" Max.
Electrical: 110 VAC 1-Phase 5 Amp Circuit
Control: Dry Contact (Low Volt) Standard
Physical: 6.25"L (9.75"L with Infeed Arms) x 28"W x 13"H

Options:

 Speed Following
Allows Walco Systems divert gates to follow
transports base belt speeds, using one speed control
