Inclines

Inclines

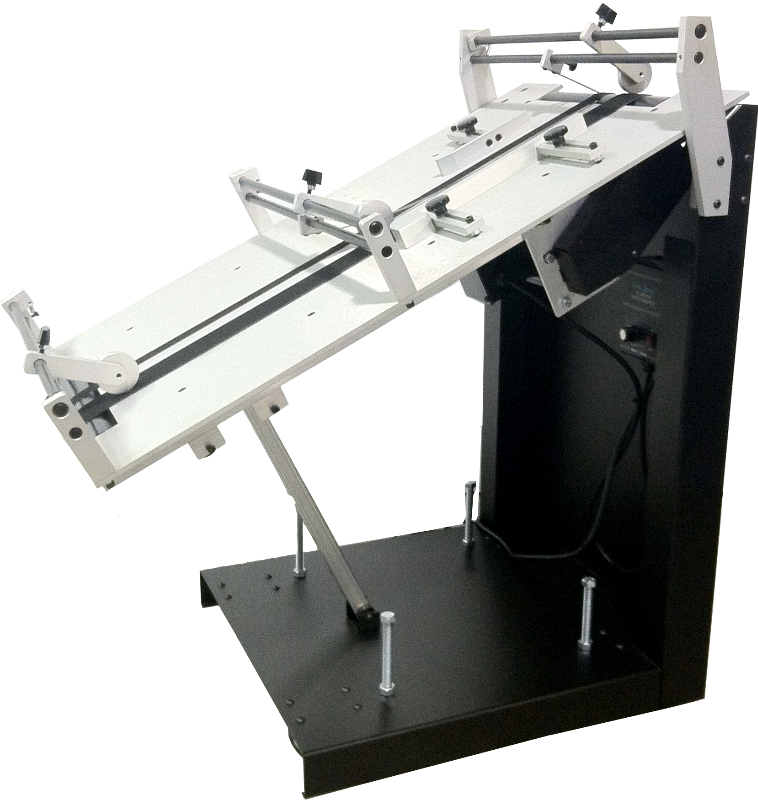

350INC

 Your folder or tabber can now be run inline with the rest of your equipment thanks to the 350INC.  With one simple adjustment, the infeed end of this machine can be adjusted to meet the outfeed end of your folder or tabber.  The outfeed end is stationary, resulting in an inclined ramp for your product to be transported onto a standard height addressing machine.



Features

  • Quick and Easy Setup
  • Non-Proprietary Components
  • Variable Speed Transport
  • Adjustable Belts & Guides

Watch this machine in action!

Uncompromising Drivetrain

  • Large Diameter Steel Shafts
  • Steel Drive Pulleys
  • 12" Wide Steel Rollers
  • Sealed Shaft Locking Collar Bearings

Specifications

Turn Direction: Left or Right
Material Size: Min. 5"L x 3"W - Max 8.5"W x 11"L
Material Thickness: Up To 1/2" Standard
Physical: 35"L x 23.5"W x 20-36"H (infeed) 33-36"H (outfeed)
Electrical: 110 VAC Single Phase 10 Amp Circuit
