Vacuum Transports

Vacuum Transports



Additional Information

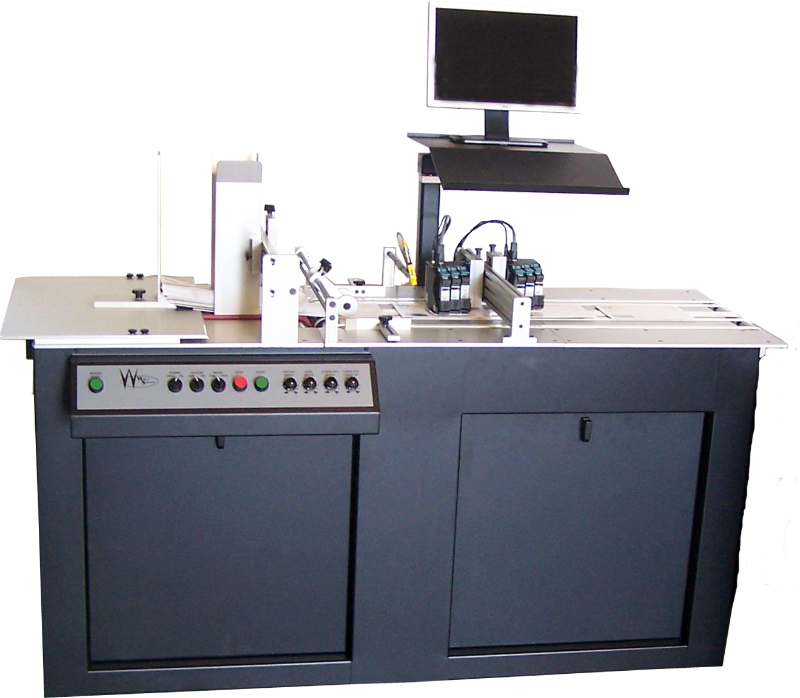

Walco Systems manufactures vacuum transport bases in 24", 35",42", 65.5", and 96" lengths. The VT series vacuum belt transport systems are engineered for accurate product control and registration. Quality components and durability ensure customer satisfaction even for the most demanding applications.

 Vacuum Transports



240VT

Transport Direction: Left to Right or Right to Left
Material Size: Min. 2"L x 3"W - Max 20" wide
Material Thickness: Up To 1/2" Standard
Physical: 24"L x 23.5"W x 33-36" H
Electrical: 110 VAC Single Phase 10 Amp Circuit

Features

  • Variable Speed Transport
  • Adjustable Belts
  • Independent Vacuum Control
  • Adjustable Infeed Product Guides
  • Feeder Interlock Switch
  • Vacuum Belts
  • Integrated VSC Converyor Controls
  • 12" Wide Transport Rollers
  • Full Frame Construction
  • Adjustable Infeed Rollers

Quality Components

  • Heavy Duty Gear Drive Motors
  • Commercial Regenerative Blower
  • Large Diameter Shafts
  • Sealed Shaft Locking Collar Bearings

Options

  Speed Following

Allows Walco System feeders & transports to
maintain matching belt speeds, using one
speed control.

  Monitor/Keyboard

The spacious articulating platform is large
enough to accommodate a full size monitor
& keyboard.

350VT

Transport Direction: Left to Right or Right to Left
Material Size: Min. 2"L x 3"W - Max 20" wide
Material Thickness: Up To 1/2" Standard
Physical: 35"L x 23.5"W x 33-36" H
Electrical: 110 VAC Single Phase 10 Amp Circuit

655VT

Transport Direction: Left to Right or Right to Left
Material Size: Min. 2"L x 3"W - Max 20" wide
Material Thickness: Up To 1/2" Standard
Physical: 65.5"L x 23.5"W x 33-36" H
Electrical: 110 VAC Single Phase 10 Amp Circuit
